M - SOSS Hinges - 3D

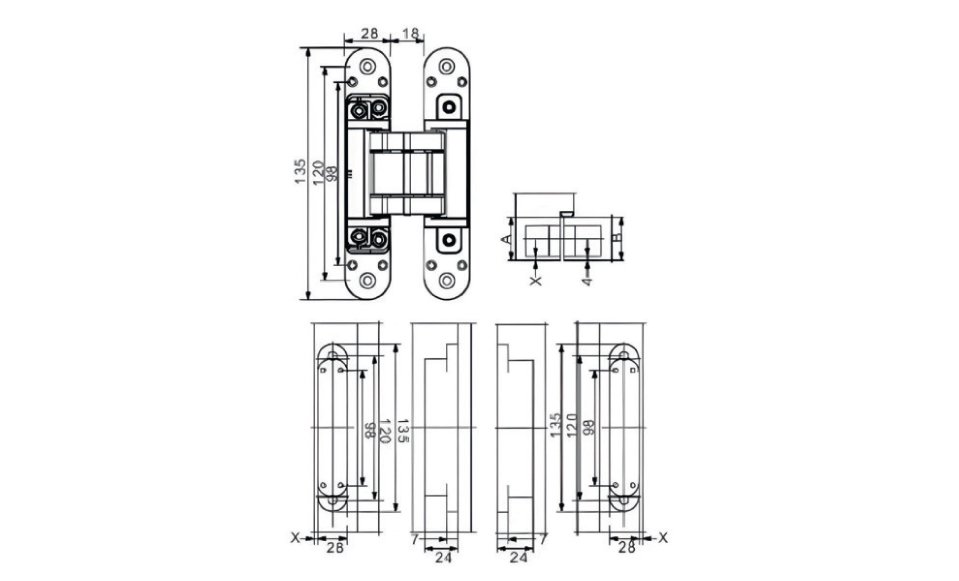

28mm x 135mm
Model No Size
M-CH-06 SS | Black
FEATURES
  • Suitable for Wooden Doors, Steel Door, Folding Door
  • Opening Angle 180°
  • Material : Zinc Alloy / Aluminium Alloy
  • Maximum Load Bearing Capacity of 2 Hinges : 60kg
  • Maximum Door Width : 900mm
  • Maximum Door Height : 2300mm
  • Application Door Thickness : Min. 38mm - 55mm
  • Hidden Installation
  • Concealed HInge Installation : Depend on the Thickness and weight of the door. It can be determined according to your actual situation
  • The Standard is to install 3 Hinges Per Door

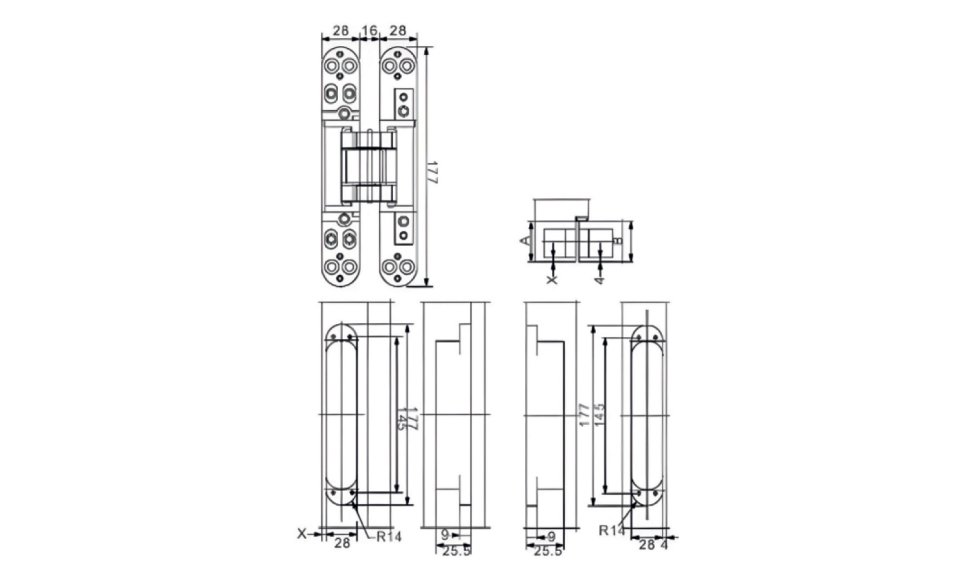

28mm x 177mm
Model No Size
M-CH-07 SS | Black
FEATURES
  • Suitable for Wooden Doors, Steel Door, Folding Door
  • Opening Angle 180°
  • Material : Zinc Alloy / Aluminium Alloy
  • Maximum Load Bearing Capacity of 2 Hinges : 80kg
  • Maximum Door Width : 1100mm
  • Maximum Door Height : 2300mm
  • Application Door Thickness : 40mm
  • Hidden Installation
  • Concealed Hinges Installation : Depend on the Thickness and weight of the door, and can be determind according to your actual situation
  • The Standard is to install 3 Hinges on Each Door
32mm x 200mm
Model No Size
M-CH-08 SS | Black
FEATURES
  • Suitable for Wooden Doors, Steel Door, Folding Door
  • Opening Angle 180°
  • Material : Zinc Alloy / Aluminium Alloy
  • Maximum Load Bearing Capacity of 2 Hinges : 100kg
  • Maximum Door Width : 1000mm
  • Maximum Door Height : 2100mm
  • Application Door Thickness : Min. 60mm
  • Hidden Installation
  • Concealed HInge Installation : Depend on the Thickness and weight of the door. It can be determined according to your actual situation
  • The Standard is to install 3 Hinges Per Door
